This degassing vacuum chamber is designed to remove air from resin and silicone systems prior to pouring.
Chamber Features & Engineering

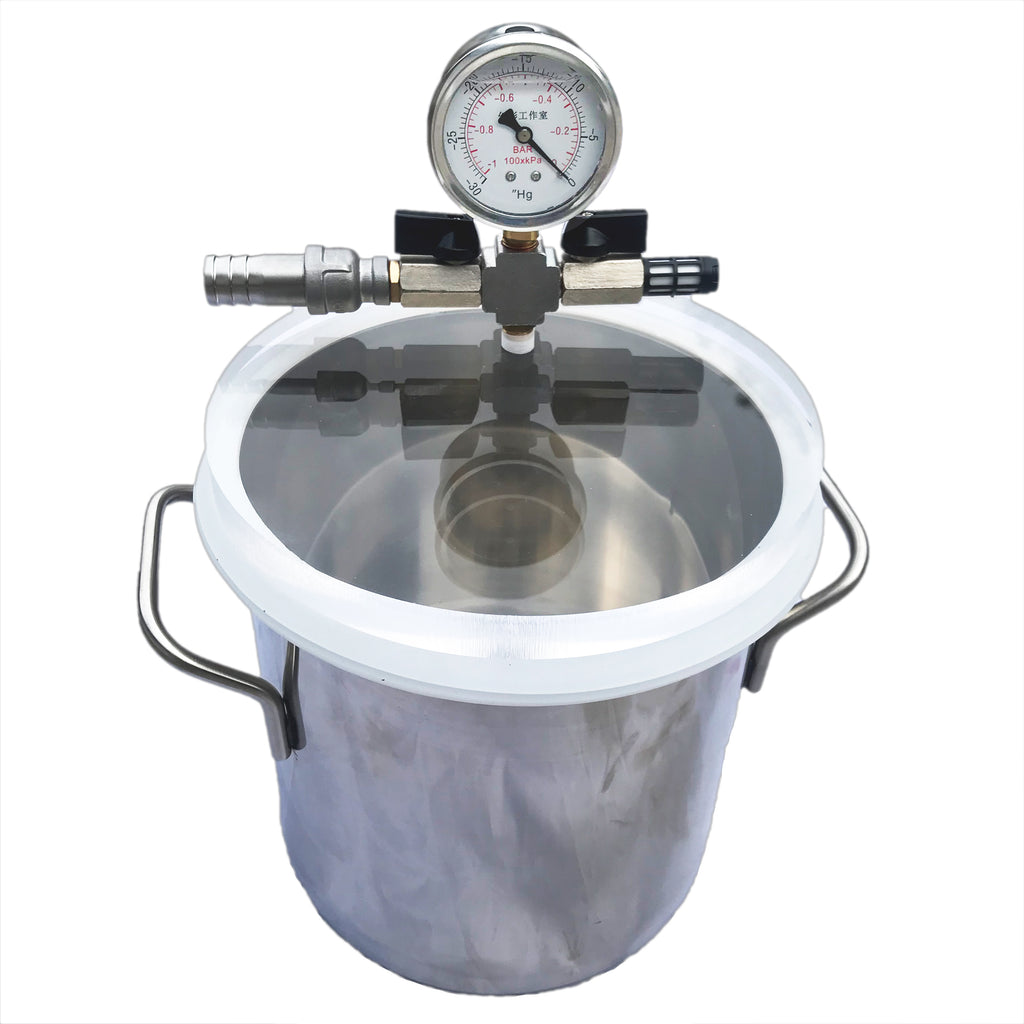

The chamber is manufactured from sturdy 1.5mm 304 grade Stainless Steel. A clear 20mm acrylic lid provides perfect visibility into the chamber during the degassing operation whilst a custom silicone seal ensures reliable and fast sealing of the chamber.
Also includes two welded handles for easy moving.
Dimension: 250mm W*250mm R*250mm L

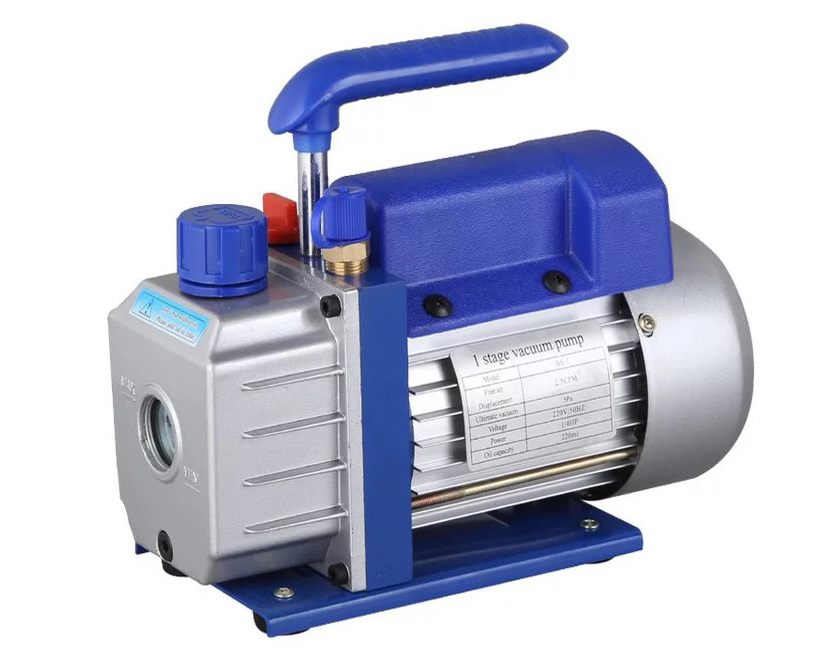

Vacuum Pump Features & Engineering
High quality valves, fittings, oil and a glycerine-filled vacuum gauge complete the chamber and ensure years of trouble-free service.
Flow Rate: 8CFM 226L/MIN
Ultimate Vacuum: 5Pa, 0.05Mbar
Motor Size: 3/4 HP
Voltage: 240 V
Oil Capacity: 300 ml
Dimensions: 360mm x 135 mm x 270 mm
Weight: 19 kg.
One-stage oil-sealed rotary vane
Wide Stable Base Plate
See-through oil sight glass
Lightweight Aluminium Design.
Some assembly required
Quick assembly in 10 minutes. Easy to follow instructions (PDF format)
