Shore Durometer D Type 0-100 Hard Rubber Tire Hardness Tester Meter
Shore D hardness tester for hard rubber, resin and plastics, reading 0 to 100. Check your materials with confidence. Shop testers at Resin Art NZ.
Product details and specifications
Easy to use, accurate measurement, easy to carry, durable and stable, practical and strong.
This rubber hardness tester is a measure of sulfur rubber and plastic products of hardness of the instrument. Made of alloy material, waterproof not rust, fine workmanship, durable. The dial scale is clear and the degree is more intuitive and convenient. The connecting device is more convenient to use with the frame.
Type D is suitable compatible with general hard rubber, resin, acrylic, glass, thermoplastic rubber, printing plate, fiber etc.
Instructions: The sample on strong plane, take the hardness tester, pressure needle distance sample at least 12 mm edge smooth put pressure on foot pressure in the sample, makes the needle vertical pressure into the sample, until the feet and sample completely contact pressure when within 1s reading. Measuring at least 6 mm apart in different positions of the measurement hardness value 5 times, take the average (micro-porous materials are measuring at least 15 mm).
In order to stabilize determination conditions, to enhance determination accuracy, hardness tester device should be in the same determination on supporting producer determination.
Dial value: 0-100 degrees
Pressure needle trip: 0-2.5 mm
Accuracy: 0.1 mm
Test compatible withce: 0.5 N
Type: D
D type: 0-44.5 N
Colour: Silver+black
Material: metal

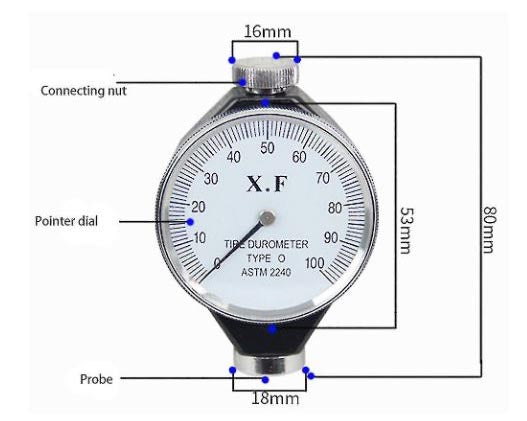

Size:78 x 52 x 22 mm/3.07x2.05x0.87 inch
Weight: 200 g
Package Contents: 1 x Durometer Only
Questions before you buy
How do I choose the correct option?
Use the product details below to compare the listed sizes, model and pack contents, and select the required option where available. Refer to the product instructions for operation and compatibility.
